Vertical Diode Laser
Hair Removal System
A four-wavelength professional diode laser platform with intelligent treatment guidance, a 12.1-inch main touchscreen, advanced handpiece cooling and system monitoring.
755 · 808 · 940 · 1064 nmUp to 20 HzTEC coolingSmart operating system
Intelligent control.
Professional versatility.
The vertical diode laser system combines four selectable wavelengths with adjustable energy and pulse settings. Android-based connectivity and intelligent parameter recommendations support the trained operator throughout treatment planning.
Four Wavelengths. One System.
The supplier brochure describes different absorption and penetration characteristics for each wavelength.
Fine / light-coloured hair
Described for greater melanin absorption and targeting finer or more superficially located hairs.
Versatile hair removal
A conventional diode-laser wavelength described for general treatment across multiple hair types.
Additional absorption profile
Supplier-described interaction with haemoglobin and deeper target structures.
Deeper follicle targeting
Lower melanin absorption and deeper penetration described for considerations involving darker skin phototypes.
Connected Technology. Guided Workflow.
System connectivity and parameter-assistance features described in the original equipment brochure.
Android interface
Android-based system with supplier-listed Wi-Fi and Bluetooth connectivity.
Cloud data transfer
Supplier-described cloud data transfer capabilities for system-related information.
Mobile remote control
Remote operation, adjustment of treatment parameters and user-information management on mobile.
Automatic setting guidance
The system recommends settings after entry of treatment area, skin colour, hair colour and hair density.
Up to 20 Hz frequency
Supplier-listed maximum repetition frequency for rapid laser pulse delivery.
Laser-bar construction
American Coherent laser bars are listed in the supplier brochure, alongside a 100-million-shot warranty claim subject to its terms.
Precise Control at Your Fingertips

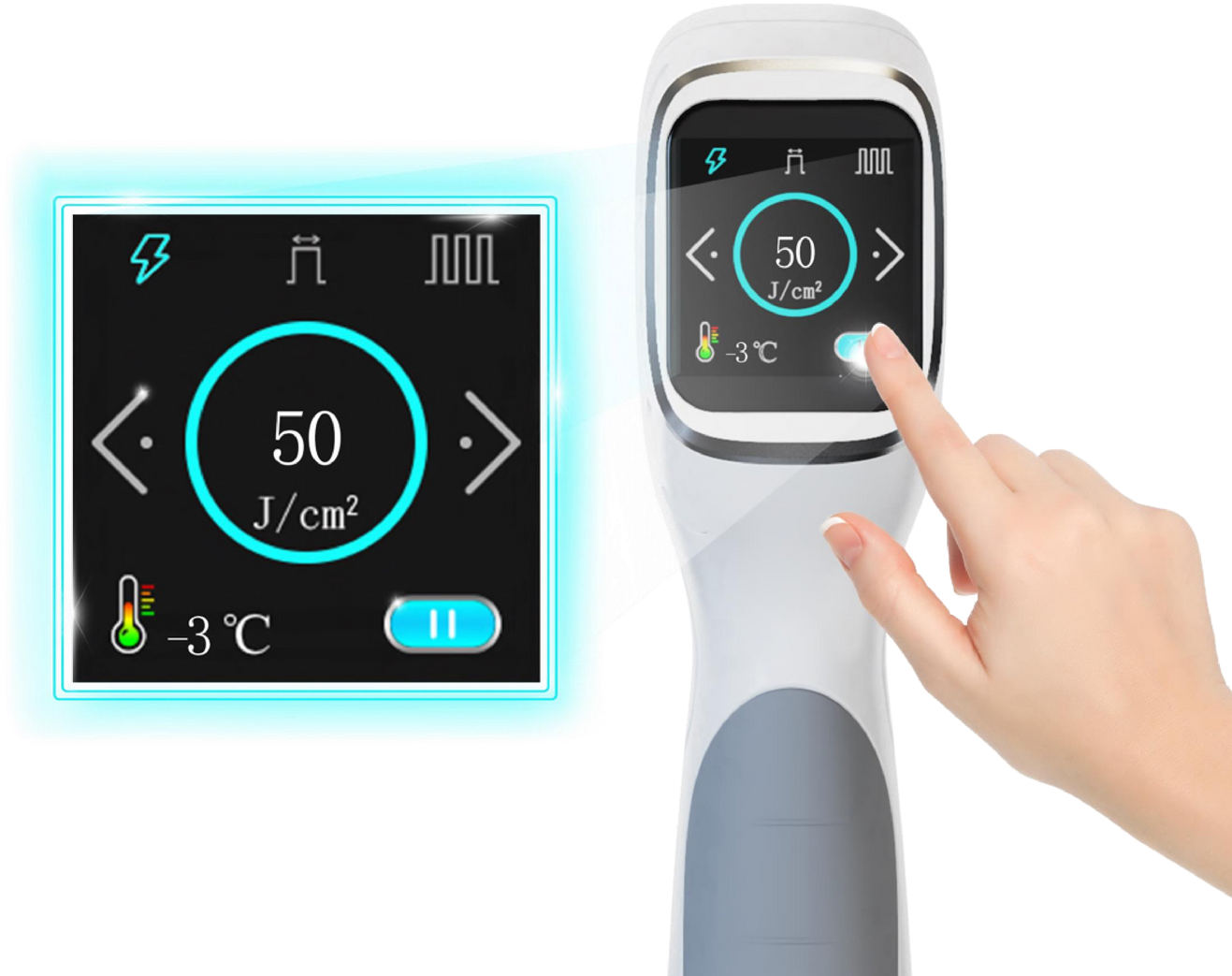

The 1.54-inch OLED handpiece screen enables operators to view and adjust parameters at the applicator. The cooling system also provides real-time temperature feedback.
- Energy adjustment
- Pulse-width adjustment
- Frequency adjustment
- Real-time contact-surface temperature display
- Optional facial tip for hard-to-reach areas (12 × 12 mm handpiece)
Engineered for Cooling and Reliability
Features shown and described in the source brochure.

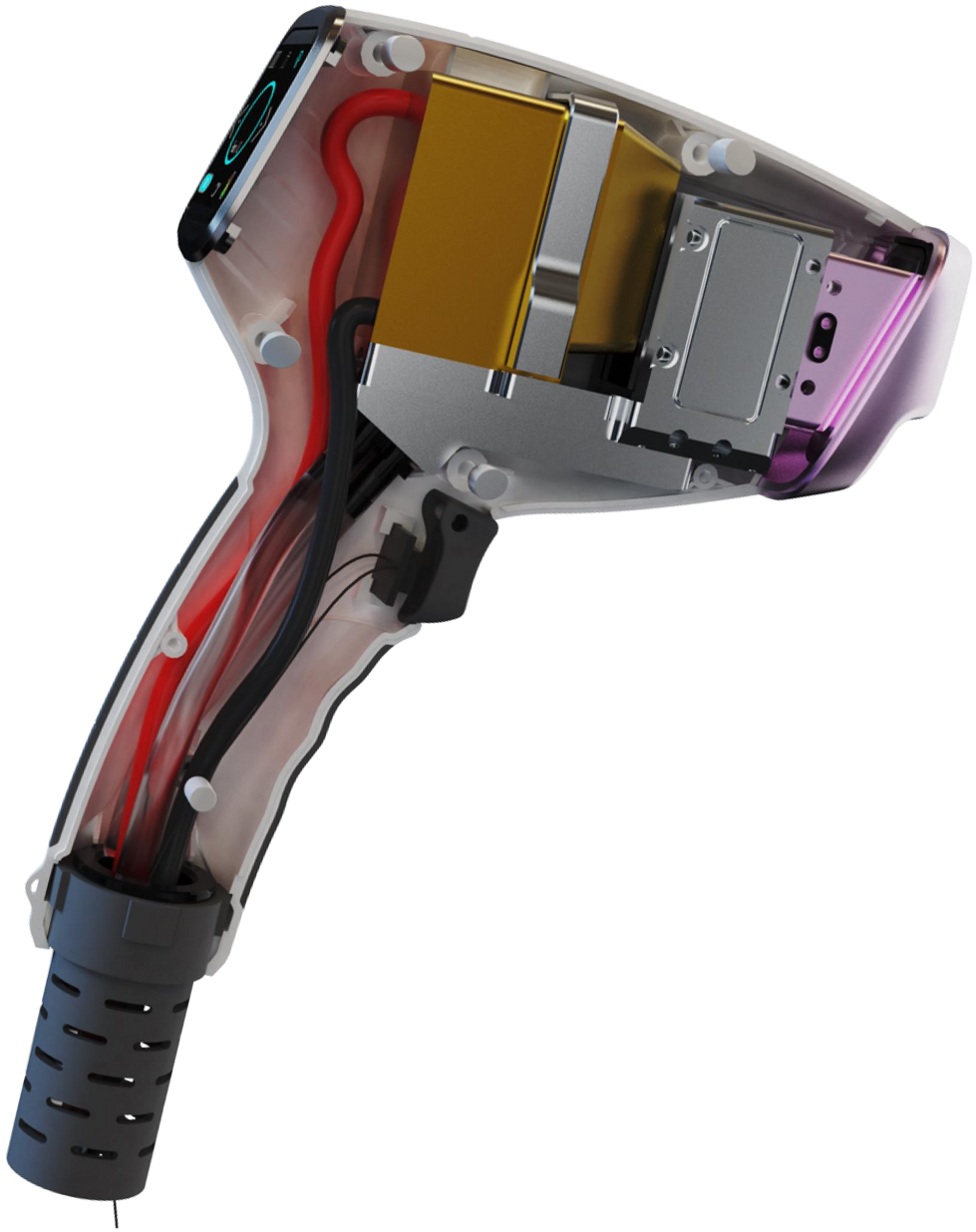

Sapphire contact crystal & active cooling
Two semiconductor cooling plates are listed with a combined 108 W cooling rating. The supplier claims a spot-contact temperature as low as −30°C under specified conditions, with a sensor monitoring the light-outlet surface.

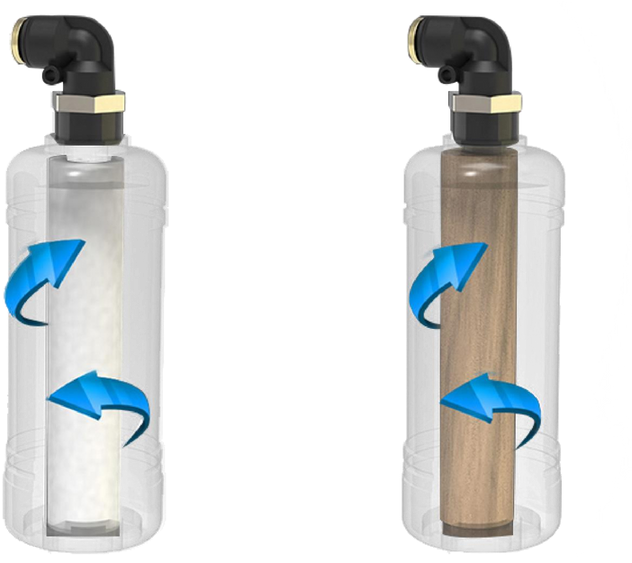

Two-stage water filtration
The brochure describes a PP cotton particle filter followed by an ion filter to reduce metal-ion contamination and protect internal cooling components.
20 system checks
Real-time status checks include water flow, water level, water temperature, handpiece temperature and connectivity, and cooling-sheet operation.
Handpiece spot options
Supplier lists configurations from 600 W to 2000 W and spot sizes 12 × 12, 12 × 20, 12 × 24 and 12 × 28 mm. Availability depends on the chosen handpiece.
Thermal management
Handpiece surface temperature sensing and a TEC cooling architecture complement the contact sapphire crystal.
Technical Specifications
Values are reproduced from the source brochure for the vertical diode laser system.
| System power | 4000 W |
|---|---|
| Handpiece power | 1600 W (listed specification) |
| Wavelengths | 755 / 808 / 940 / 1064 nm |
| Machine screen | 12.1 inches |
| Handpiece display | 1.54-inch OLED touchscreen |
| Energy density | 1–120 J/cm² (supplier-listed deviation ≤ ±2%) |
| Pulse width | 1–200 ms |
| Standard spot size | 12 × 20 mm |
| Other handpiece options | 12 × 12, 12 × 24, 12 × 28 mm; power configurations supplier-listed as optional |
| Frequency | 1–20 Hz |
| Cooling system | TEC cooling system |
| Net weight | 57 kg |
| Device dimensions | 470 × 500 × 1330 mm |
| Package dimensions | 530 × 492 × 1120 mm (supplier-listed) |
| Fuse | Ø5 × 25 mm, 10 A |
| Power input | AC 220 V ±10%, 10 A, 50 Hz / AC 110 V ±10%, 10 A, 60 Hz |
Supplier-stated technical data, accessories, laser-bar warranty and thermal-performance claims require confirmation against the delivered configuration and applicable warranty terms. This professional medical-aesthetic equipment should be operated by qualified personnel using appropriate clinical assessment and safety procedures.
