Dual-Handpiece Diode Laser
Hair Removal System
Professional four-wavelength diode laser technology in a dual-handpiece platform with touchscreen control, configurable treatment settings and integrated cooling.
755 · 808 · 940 · 1064 nmTwo handpiecesUp to 20 HzTEC cooling
Two applicators.
One professional platform.
The dual-handpiece diode laser system combines four wavelengths with two treatment applicators, a vertical 12.1-inch main display and 1.54-inch OLED handpiece screens. The supplier lists a 4000 W system rating and 2000 W handpiece rating.
Four Wavelengths. Broad Treatment Versatility.
The supplier describes different absorption and penetration characteristics for the four wavelength options.
Fine / superficial hair
Described as offering relatively strong melanin absorption and targeting finer or more superficially located hair.
General hair removal
The supplier presents this as a general-purpose diode-laser wavelength for a variety of hair types.
Additional absorption profile
Supplier-described interaction with haemoglobin and deeper structures, with comparatively lower melanin absorption.
Deeper follicle targeting
Described as having reduced melanin absorption and deeper penetration for considerations involving darker skin phototypes.
High-Performance Features
Key features and component descriptions from the supplied dual-handpiece brochure.
Dual-handpiece architecture
Two applicators on a single vertical treatment system support workflow flexibility.
Up to 20 Hz repetition rate
The supplier lists a maximum pulse repetition frequency of 20 Hz.
Coherent laser bars
Supplier-listed American Coherent laser-bar construction; a 100-million-shot warranty claim is subject to applicable terms.
1.54-inch handpiece display
OLED touchscreen allows on-handle viewing and adjustment of selected operating parameters.
Intelligent thermal monitoring
Surface-temperature sensing provides real-time handpiece temperature information.
TEC cooling architecture
Cooling system combines thermoelectric components with a sapphire contact crystal.

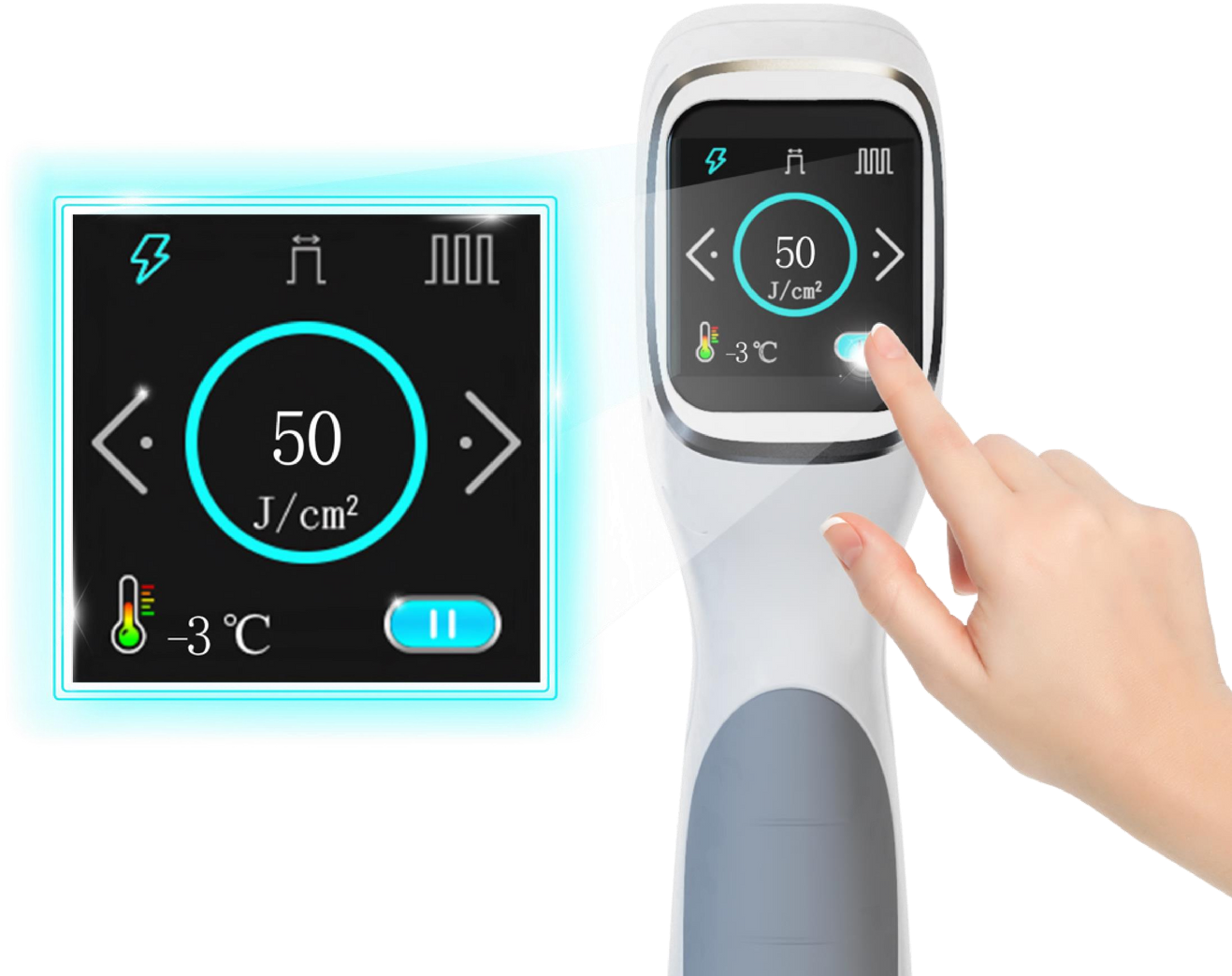

Touchscreen Control at Your Fingertips
Each supplier-described handpiece integrates a 1.54-inch high-definition OLED touchscreen, designed for convenient visibility and adjustment of treatment parameters.
- Energy setting adjustment
- Pulse-width adjustment
- Frequency adjustment
- Real-time contact-temperature readout
Cooling, Filtration & Monitoring
Device protection and cooling components shown in the supplier brochure.

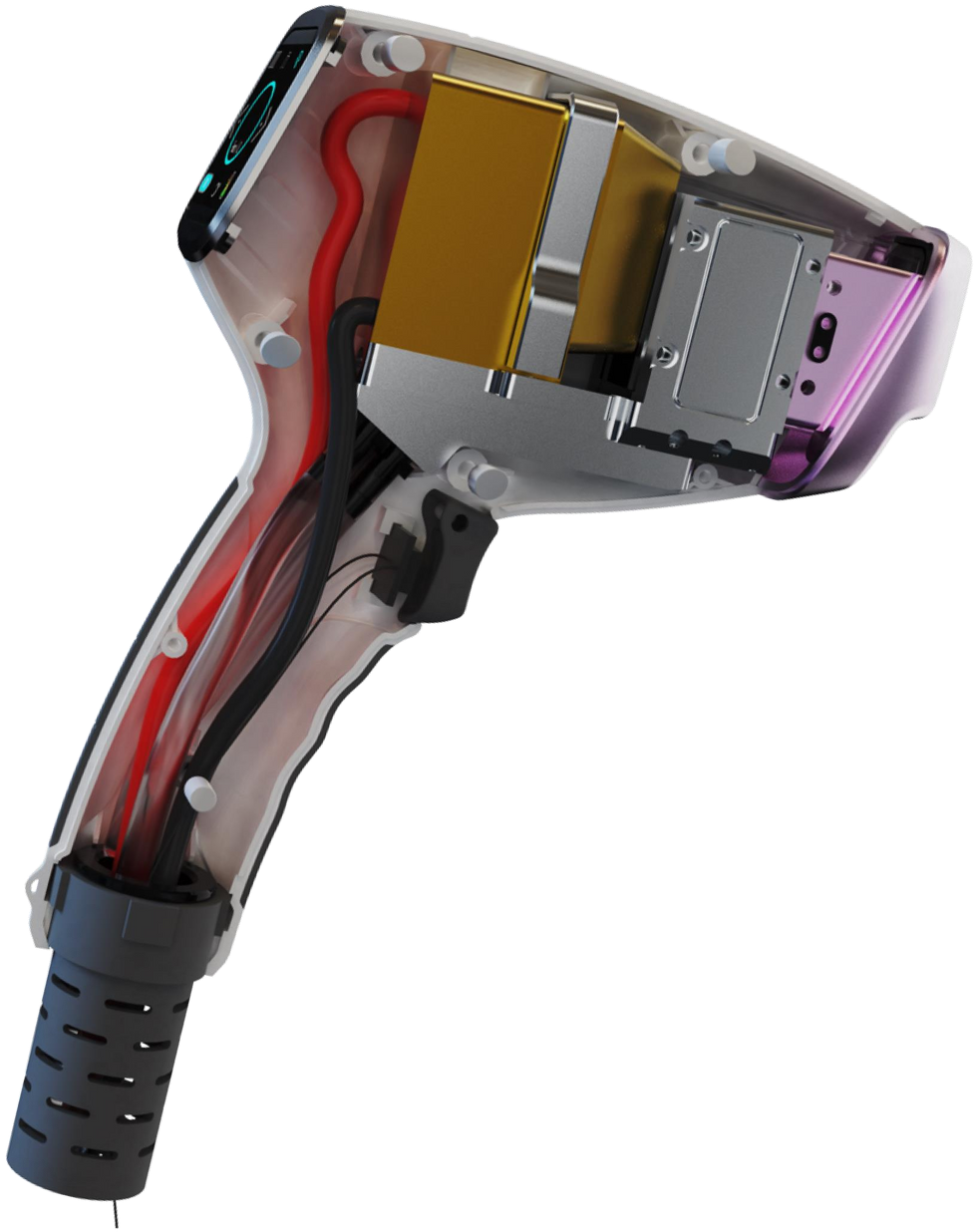

Sapphire crystal & contact cooling
The supplier describes a sapphire contact surface and 108 W semiconductor cooling arrangement; contact temperatures as low as −30°C are claimed under unspecified test conditions.

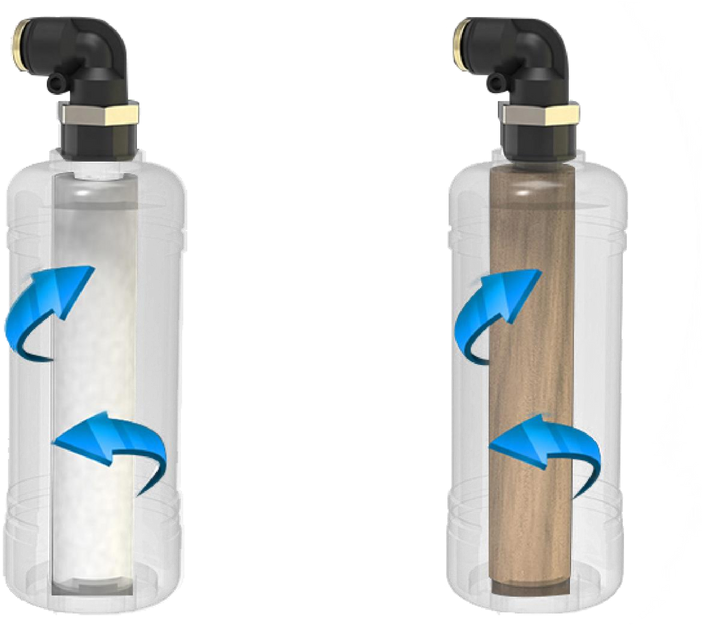

Two-stage water filtration
PP cotton filtration is described for particulate removal, followed by ion filtration intended to help reduce metal-ion contamination in the water circuit.
20 real-time system checks
Supplier-described monitoring includes water flow, water level, water temperature, handpiece connection, handpiece temperature and cooling-sheet operation.
Integrated treatment principle
Diode laser energy is selectively absorbed by hair pigment and converted to heat at the follicle; clinical outcomes depend on individual factors and professional treatment settings.
Dual-applicator workflow
Two handpieces are mounted on the equipment, allowing clinicians to select the appropriate applicator for their treatment workflow.
Technical Specifications
Original equipment parameters transcribed from the dual-handpiece supplier brochure.
| System power | 4000 W |
|---|---|
| Handpiece power | 2000 W (listed specification) |
| Wavelengths | 755 / 808 / 940 / 1064 nm |
| Machine screen | 12.1 inches |
| Handpiece screen | 1.54-inch OLED touchscreen |
| Energy density | 1–120 J/cm² (supplier-listed deviation ≤ ±2%) |
| Pulse width | 1–200 ms |
| Spot size | 12 × 24 mm |
| Frequency | 1–20 Hz |
| Cooling | TEC cooling system |
| Net weight | 57 kg |
| Device dimensions | 470 × 500 × 1330 mm |
| Package dimensions | 530 × 492 × 1120 mm (supplier specification) |
| Fuse | Ø5 × 25 mm, 10 A |
| Power input | AC 220 V ±10%, 10 A, 50 Hz / AC 110 V ±10%, 10 A, 60 Hz |
All performance specifications, included options, warranty terms and clinical suitability are supplier-stated; verify them for the exact supplied unit. Intended for trained professional operators. The supplier brochure lists package dimensions of 530 × 492 × 1120 mm; check against the artwork before printing final marketing materials.
